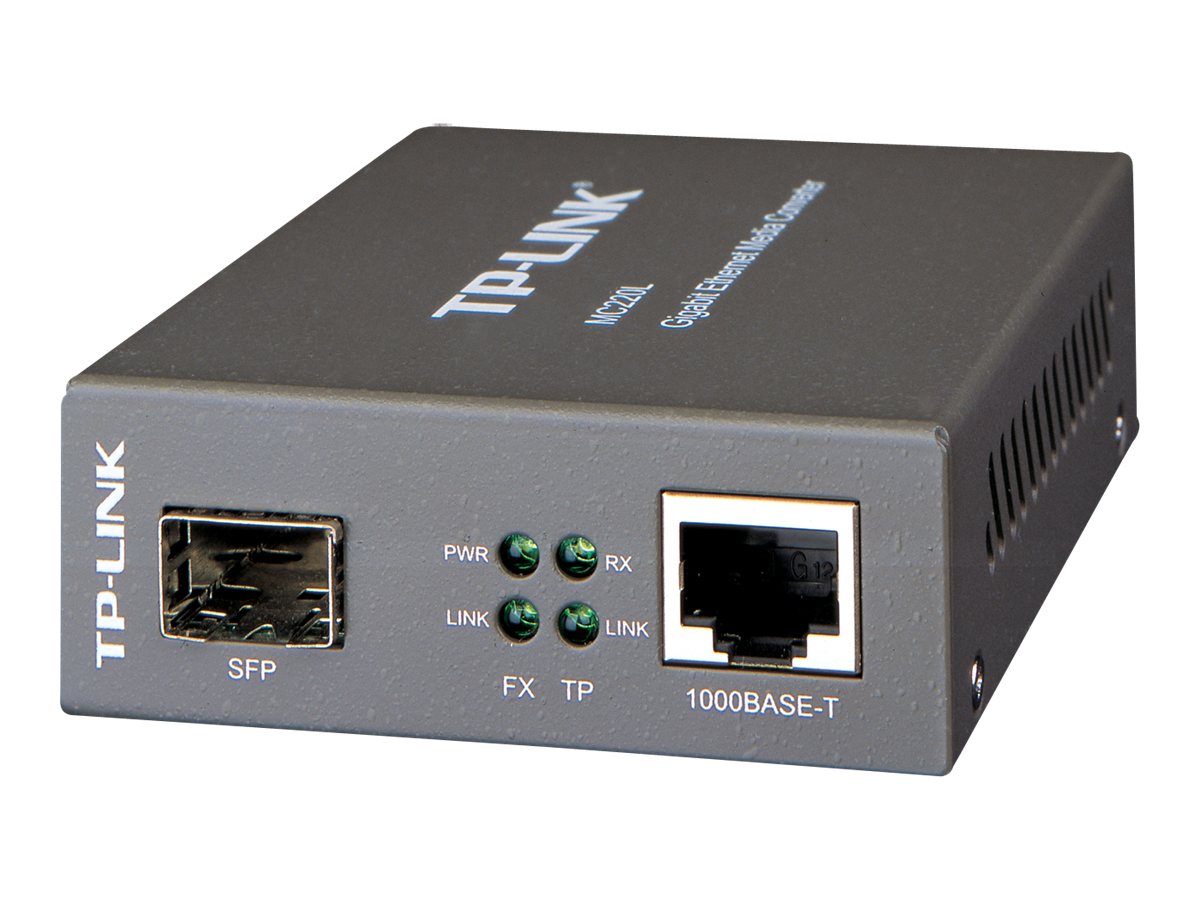

TP-Link Gigabit SFP Media Converter Fiberkonverterare – MC220L
Beskrivning:
Gigabit SFP Media Converter MC220L
– Complies with IEEE 802.3ab and IEEE 802.3z
– FX port supports hot-swappable
– Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Specifikationer:
| Cabling technology | UTP 5e, 5 |
| Connectivity technology | Wired |
| Maximum transfer distance | 10000 m |
| LED indicators | Link |
| Operating temperature range (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity range | 10 – 90 % |
| Storage relative humidity (H-H) | 5 – 90 % |
| Certification | FCC, CE |
| Dimensions W x D x H | 94.5 x 73 x 27 mm |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Full duplex | Yes |
| I/O ports | 1x 1000M SCn1x 1000M RJ45 |
